waterproof beam moving head

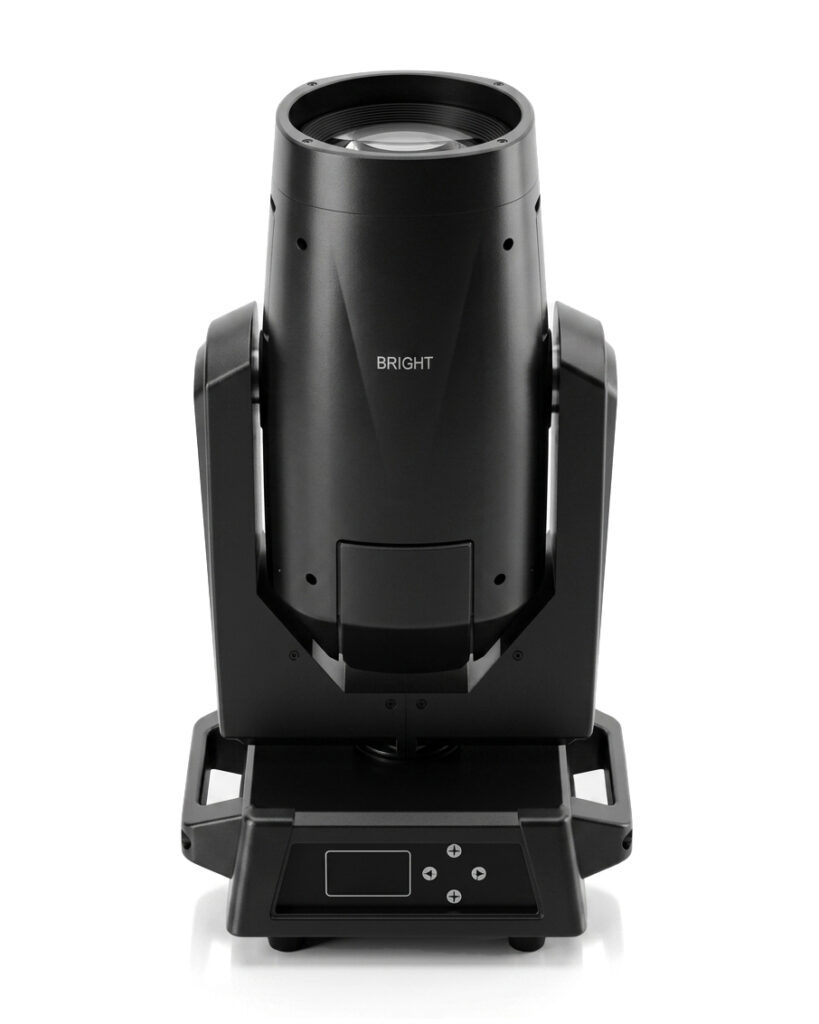

The PROSTAGE SP-580F is a rugged waterproof beam moving head (a motorized lighting fixture that can rotate and tilt) engineered for high-impact outdoor spectacles. Featuring a robust IP65-rated cast aluminum body, it is completely dust-tight and rain-proof. At its core is a powerful 300W source that projects a crisp 9000K cool-white beam through a massive 168mm lens. It utilizes high-precision three-phase motors to ensure smooth, jitter-free movement, while its advanced dual prism systems create expansive, multi-layered patterns. Perfect for professionals requiring weatherproof event technology, this waterproof beam moving head provides the reliability and intensity needed for landmarks, stadiums, and festivals.
PROSTAGE SP-580F: The Ultimate Outdoor Beam Moving Head Light for All Weather
The PROSTAGE SP-580F is a professional-grade outdoor beam moving head light engineered to deliver high-intensity visual performance in even the most challenging environments. Designed with an IP65 protection rating (a standardized code indicating the fixture is completely dust-tight and can withstand water jets from any direction), this fixture is the perfect choice for permanent outdoor installations and large-scale open-air events. At its core lies a 300W light source with an average lifespan of 12,000 hours, providing a brilliant 9000K color temperature for crystal-clear beam projection.
Weatherproof Engineering for Reliable Performance
What sets the SP-580F apart as a premier outdoor beam moving head light is its robust IP65 waterproof rating. This rating ensures that rain or dust will not compromise the internal electronics or the high-definition precision optical system. To maintain peak performance, the device utilizes a low-noise convection cooling system, which uses air circulation to move heat away from sensitive components without letting moisture in. For designers building professional venue lighting kits, the SP-580F provides a “set-and-forget” level of reliability that traditional indoor fixtures simply cannot match.
Precision Beam Control and Electronic Focusing
The SP-580F offers exceptional control over its 300W output. The integrated electronic focusing system allows for a range of 0.8°, enabling operators to sharpen the beam’s edge from distances as close as 2 meters all the way to infinity (the distance at which light rays become virtually parallel). With 16 colors and a mechanical strobe capable of 1-15 flashes per second, this fixture creates dynamic, fast-moving mid-air effects that pierce through the darkness.
Versatile Optical Systems and Stackable Prisms
Beyond raw power, this outdoor beam moving head light provides immense creative flexibility through its dual-disc prism system.
- Prism Disc 1: Features a three-color rotating 3-prism, a 6+12-prism, and a 24-prism.
- Prism Disc 2: Includes a fixed 8-prism and a honeycomb prism (a multi-faceted lens that splits light into a complex, tight geometric pattern). By stacking these discs together, the fixture can achieve 11 distinct prism effects, allowing for the creation of complex textures and wide-reaching “flower” effects. Combined with 0-100% linear dimming (the ability to smoothly adjust brightness without any flickering or jittering), the SP-580F ensures every transition is as fluid as the performance it illuminates.
Technical Specifications:
| Parameter Category | Technical Details |
|---|---|
| Model | PROSTAGE SP-580F |
| Electrical: Rated Voltage | AC90V-235V, 50-60Hz |
| Electrical: Total Power | 600W |
| Light Source | Osram 420W |
| Optical: Beam Angle | 2° – 5° (Linear adjustable) |
| Optical: Color Temperature | 8000K |
| Optical: Lens Diameter | 168mm |
| Color System | 14 Colors + White |
| Pattern System | 17 Fixed Patterns + White |
| Prism System | 16-facet prism & (8+16+24) facet prism |
| Dimming & Strobe | 0-100% Linear dimming / 0.5-20 times/sec Strobe |
| Movement | 540° Pan / 270° Tilt (16-bit resolution) |
| Control Modes | DMX 512, RDM, Self-running, Master-slave |
| Channel Count | 16 or 20 Channels |
| Waterproof Rating | IP65 |
| Weight | Net: 24kg / Gross: 28kg |
| Dimensions | 393 × 317 × 670mm |
| Installation | Upright or Hanging (Upside down) |
