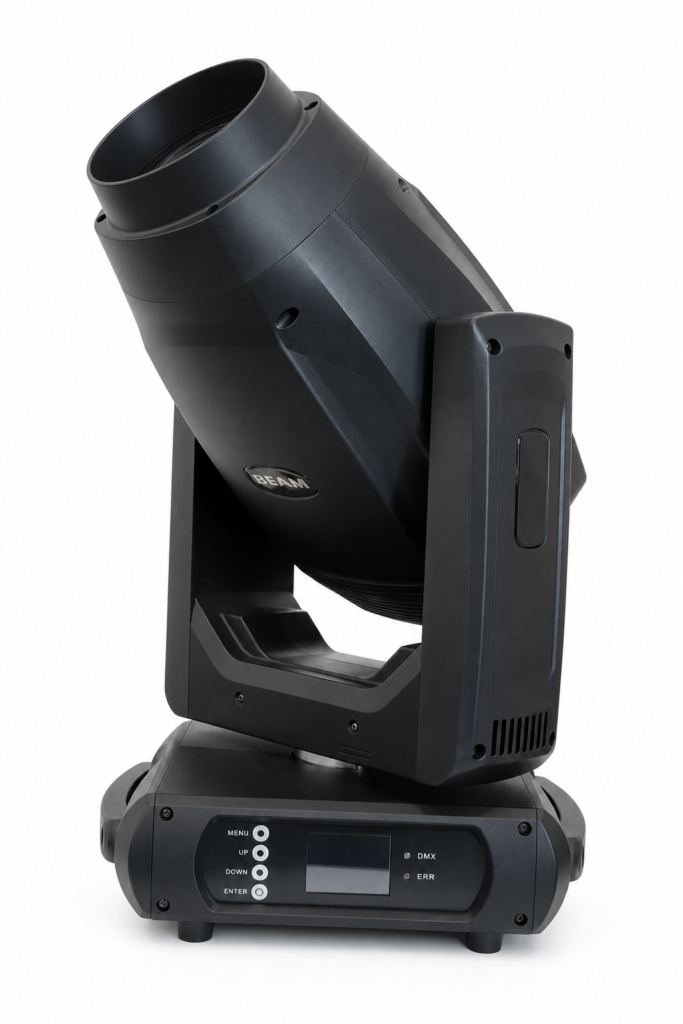

PROSTAGE PM-8200: Powerful led hybrid moving head for Breathtaking Shows

PROSTAGE PM-8200: The Incredible led hybrid moving head for Versatile Stages

In the professional production world, the word “hybrid” represents the peak of efficiency. Historically, a lighting designer would have to hang three separate fixtures (the industry term for an individual light unit) to achieve beam, spot, and wash effects. The PROSTAGE PM-8200 changes that dynamic entirely. As a high-performance led hybrid moving head (a motorized light that can rotate and tilt while offering multiple beam styles), this unit serves as the “Swiss Army Knife” of your lighting rig, allowing you to transition between different visual styles in a single heartbeat.

Powered by a robust 400W LED source, the PM-8200 projects a brilliant 7500K cool-white output. For those new to lighting, 7500K refers to a color temperature that mimics bright, crisp daylight, which is essential for ensuring your stage looks sharp and high-energy even under ambient room lights. Let’s explore the deep technical systems that make this led hybrid moving head the definitive choice for modern venues.

Optical Precision and Zoom Versatility of the led hybrid moving head

What truly defines a high-end led hybrid moving head is its ability to change its physical light shape through a motorized zoom system. The PM-8200 utilizes a high-definition precision optical system that offers two distinct zoom ranges:

• Beam Mode (3°-15°): In this setting, the light produces a tight, narrow column that looks like a solid “stick” in the air.
• Pattern/Wash Mode (5°-45°): The unit expands its output to cover a wider area, either for projecting patterns or creating a soft “wash” (a wide pool of color used to illuminate large sections of the stage).

This flexibility is controlled via 22 DMX channels. DMX is the universal digital language that allows a control console to talk to the light. Because this led hybrid moving head uses a 16-bit precision scanning motor, its 540° horizontal rotation and 270° vertical tilt are incredibly fluid. This high resolution prevents “jitter”—the tiny, distracting shaking often seen in lower-quality lights when they move slowly during a dramatic musical moment.

Artistic Color Control with the led hybrid moving head CMY System

Colors on a professional stage should be mixed, not just selected. The PM-8200 led hybrid moving head features an independent CMY and CTO color mixing system. CMY stands for Cyan, Magenta, and Yellow; by sliding these graduated filters together in different amounts, you can create millions of unique hues, ranging from deep royal blues to soft sunset pinks.

Furthermore, the CTO (Color Temperature Orange) adjustment allows you to shift the light from that “cool” 7500K daylight look down to a “warm” amber glow. This is vital for skin tone accuracy on camera, ensuring that performers look healthy and natural rather than washed out. To complement this mixing, the fixture includes a color wheel with 12 saturated colors and a white light position, enabling a “half-color” function where the beam can show two colors simultaneously for a split-look effect. When building advanced stage lighting fixtures into your inventory, having this level of color depth ensures your production can match any artistic mood or corporate branding requirement.

Dynamic Textures and Smart RDM in the led hybrid moving head Setup

To keep an audience captivated, a designer needs texture. This led hybrid moving head is equipped with an expansive gobo system. A “gobo” (an acronym for “Goes Between Optics”) is a stencil made of glass or metal that projects shapes like stars, clouds, or geometric patterns. The PM-8200 includes:

• 7 Rotating Glass Gobos: These can spin and shake to simulate movement like flickering fire or flowing water.
• 12 Fixed Metal Gobos: Perfect for static background textures and structural light beams.

The visual impact is multiplied by the prism system, which features two rotating 8 or 16-facet prisms. In lighting science, a prism is a geometric glass element that splits a single beam into many smaller beams; by rotating these in opposite directions, you can create a kaleidoscopic “flower” effect that fills the entire auditorium with motion.

For technical management, this led hybrid moving head supports RDM (Remote Device Management). RDM is a “two-way street” for digital data that allows the light to talk back to the control desk. This means a technician can change the light’s digital “address” or check the status of the high-efficiency heat pipe cooling system directly from their computer, removing the need for a ladder to reach lights hanging 10 meters in the air.

Conclusion: Why the PM-8200 is the Smart Investment

Choosing the PROSTAGE PM-8200 means you are investing in a led hybrid moving head that balances raw power with artistic finesse. Weighing in at 21.5kg and built with a robust IP20 housing, it is designed for the rigorous demands of touring and permanent installations alike. From its mechanical strobe (which can blink up to 15 times per second) to its smooth 0%-100% electronic dimming, every feature is engineered to provide the professional-grade performance your audience expects.

By integrating this led hybrid moving head into your rig, you reduce the physical weight on your truss and simplify your power requirements without sacrificing the creative tools needed for a world-class show. Whether you are lighting a concert hall, a church, or a high-end club, the PM-8200 provides the clarity, intensity, and versatility required to transform your stage into a world of brilliant light.
